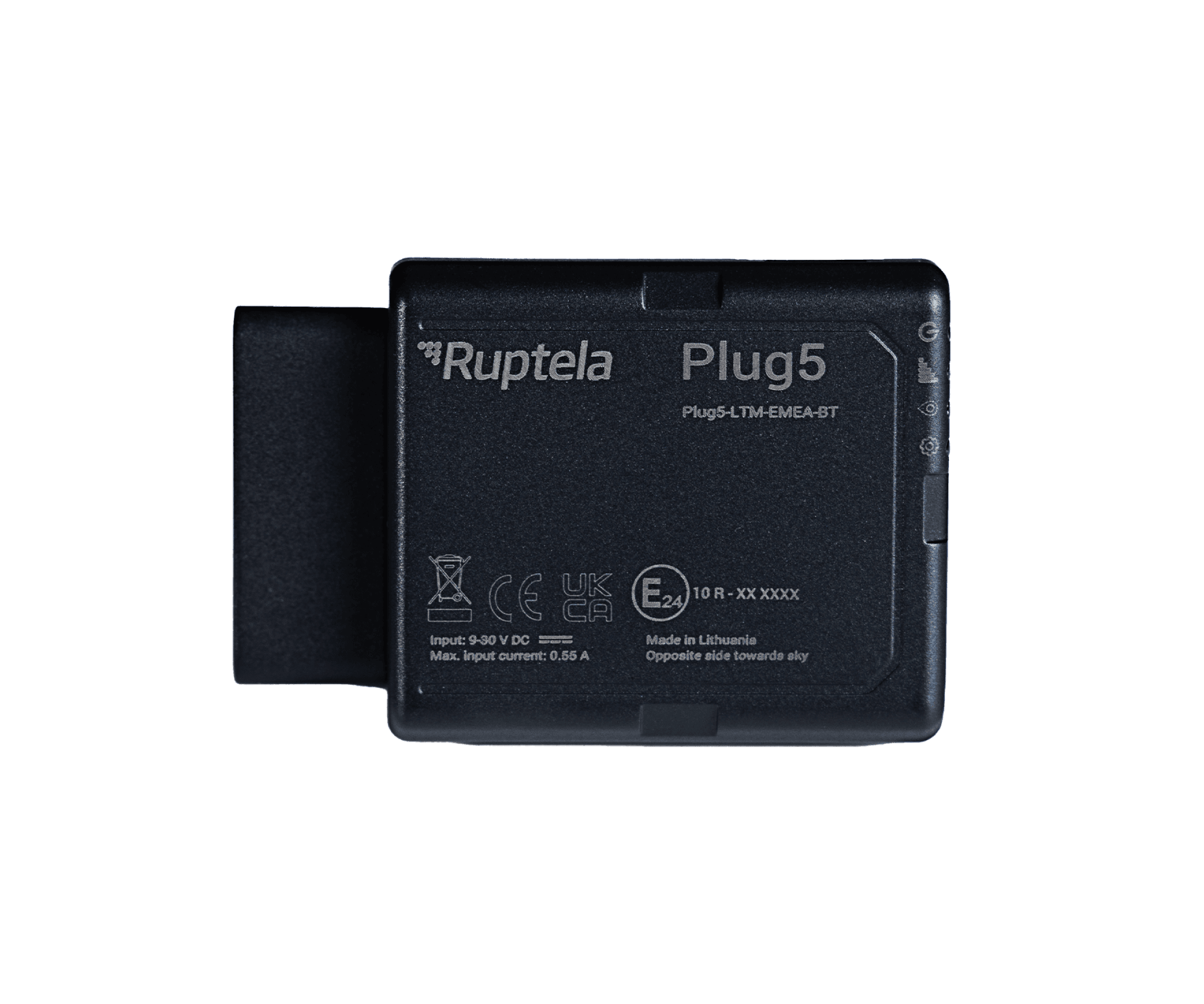

PLUG5

An advanced GPS tracker in OBD dongle form factor for Plug & Play advanced vehicle tracking!

Request a Quote
Plug5_laser

It is designed for precise vehicle tracking and can perform advanced tasks – read OBD2 and CAN data, monitor driver behavior, detect and reconstruct accidents, reduce maintenance costs, etc. Additionally, using a harness makes it possible to read data from different types of vehicles.

*Available from 2023 Q4

Request a Quote

Key values:

checkmark-1-26

Easy installation & use

Plug & Play installation, autodetection and autoconfiguration, special harnesses for installation into heavy vehicles, dedicated tools (device center, configuration assistant).

checkmark-1-26

Excellent performance

Premium GNSS by U-blox, high-quality components.

checkmark-1-26

Versatility

Suitable all types of vehicles, BLE 5.0 for various accessories.

checkmark-1-26

Secure

Jamming detection, unplug detection, backup battery, TLS v1.2.

checkmark-1-26

Broad vehicle coverage

Excellent vehicle coverage and various OBD and CANbus parameters supported (including proprietary manufacturer data).

checkmark-1-26

Full solution from one supplier

GPS tracking device combined with suitable accessories.

Applications

  • Real-time fleet monitoring
  • Fleet efficiency optimization
  • Driver behavior monitoring
  • Fuel monitoring
  • Maintenance cost reduction
  • Wi-Fi hotspot (CAT4 version only)
  • Accident detection and reconstruction
  • Stolen vehicle recovery
  • Driver identification

Specifications

  • LTE CAT4* and LTE-M connectivity with 2G fallback
  • 3-axis accelerometer
  • BLE 5.1
  • CAN (FMS, J1708, J1939), OBDII, DTC data reading
  • Internal backup battery
  • Plug & Play installation
  • U-blox GNSS module
  • Power supply 9-30V DC
  • Wide vehicle model coverage
  • Internal memory 16 MB
  • Jamming detection
  • Internal GNSS antennas
  • Wi-Fi hotspot (CAT4 version only)
  • Proprietary vehicle data reading
  • Advanced ignition detection algorithms
  • FW configuration SMS/GPRS (FOTA)/USB
  • Automatic vehicle model detection and configuration
  • Operating temperature -20 °C to +60°C

Detailed specification

Plug5 datasheet screenshot corrected

All manuals are available at doc.ruptela.com

Configuration

Device Center: configure trackers with ease

Ruptela tracking devices are configured using the Device Center application.

Device Center is a clear and user-friendly application with semi-automated configuration.  All-new design and configuration process improvements help new and advanced users with tracker configuration.

Read More

Device Management Platform: Remote configuration and firmware updates of HW devices

Device Management Platform is a dynamic online solution that allows remote configuration and firmware updates of GPS tracking devices. The platform gives the possibility to monitor the installed base from a single point of command. It is a complementary solution to all compatible Ruptela’s hardware devices.

Read More

Versions

  • Plug5-LTE-NA-BT-Wifi
  • Plug5-LTM-NA-BT
  • Plug5-LTM-EMEA-BT
