LCV5

Advanced GPS tracker for cars and light commercial vehicles. It is designed for vehicle tracking and can perform advanced tasks – read on-board computer data (CAN), read manufacturer specific OBD data, monitor driver behavior, manage fuel, etc.
The device is available in variations that use GSM (2G), UMTS (3G) and LTE Cat M1 (4G) networks and Bluetooth for communication.


  • 2G (GSM), 3G (UMTS) and LTE Cat M1 (4G) connectivity
  • LCV CAN data reading
  • External and Internal antennas, and built-in battery
  • 4xDIN, 4xAIN, 4xDOUT, 1-Wire interface
  • RS232x2 and RS485 interfaces

Overview

  • GSM (2G) and UMTS (3G) and LTE Cat M1 (4G) connectivity
  • CANbus reading (FMS, J1708, J1939)
  • External and Internal antennas
  • Built-in battery
  • 2x RS232
  • 1x RS485
  • 4x Digital inputs
  • 4x Analog inputs
  • 4x Digital outputs
  • 3x CAN interfaces
  • 1-Wire interface
  • Micro USB and 3x indications LEDs
  • Sleep and deep sleep modes
  • Accelerometer
  • Power supply range 9 – 32 V DC
  • Commands and configuration via SMS
  • Jamming detection
  • Size 101 x 74 x 23 mm

Detailed specification

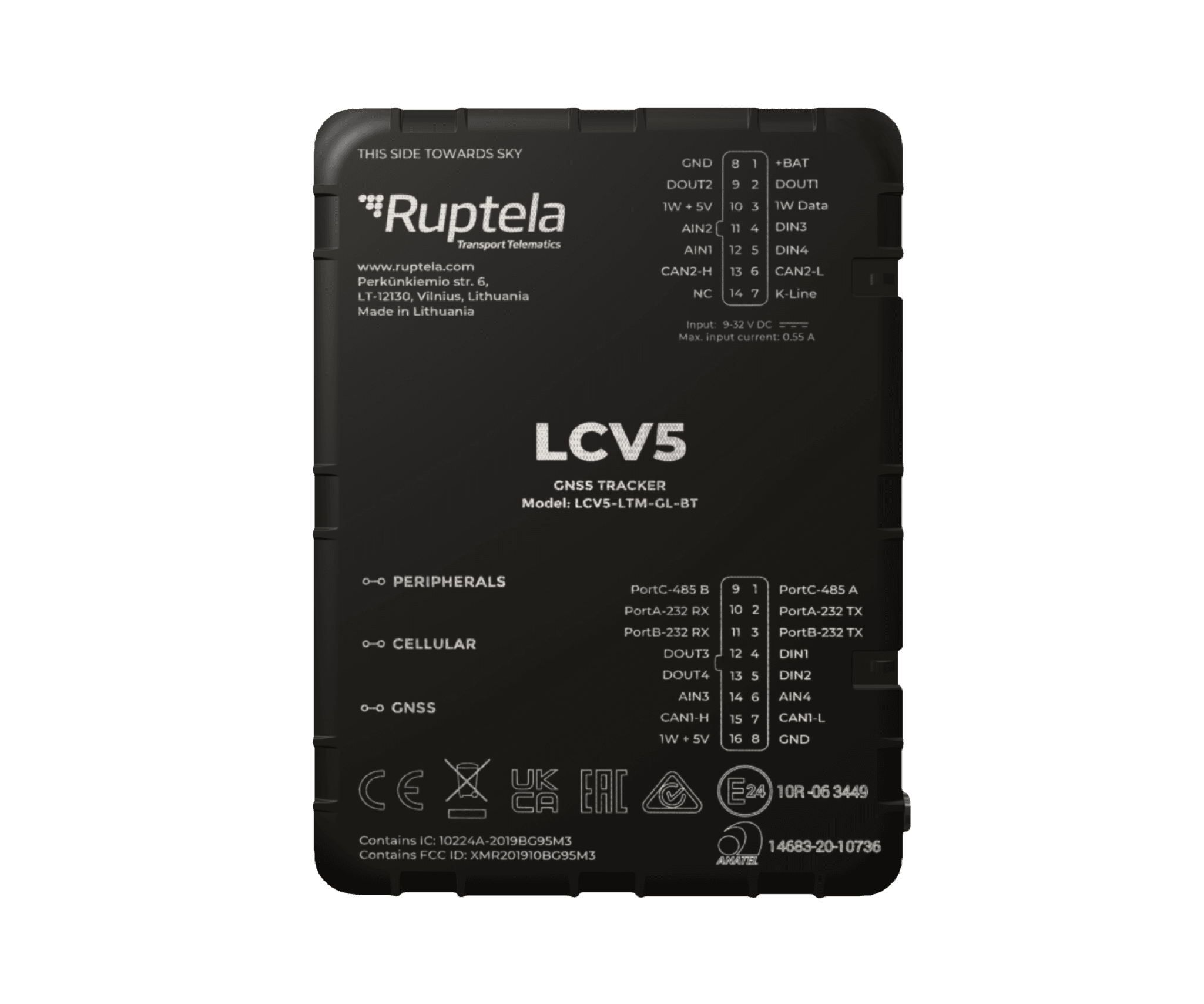

LCV5 PNG

All manuals are available at doc.ruptela.lt.

Device Center: configure trackers with ease

Ruptela tracking devices are configured using the Device Center application.

Device Center is a clear and user-friendly application with semi-automated configuration.  All-new design and configuration process improvements help new and advanced users with tracker configuration.

LCV5 features:

  • Advanced OBD and CAN reading
  • Applicable to business and private trips
  • Driver behavior monitoring
  • Safety and security
  • Car sharing
  • LCV fuel monitoring
  • Real-time monitoring of fleets
  • Fleet efficiency optimization
  • Customizable with accessories

Available product versions:

LCV-2G-GL-BT LCV5 with global 2G and Bluetooth
LCV-3G-GL-BT LCV5 with global 3G and Bluetooth
LCV-LTM-GL-BT LCV5 with global LTE Cat M1 and Bluetooth
