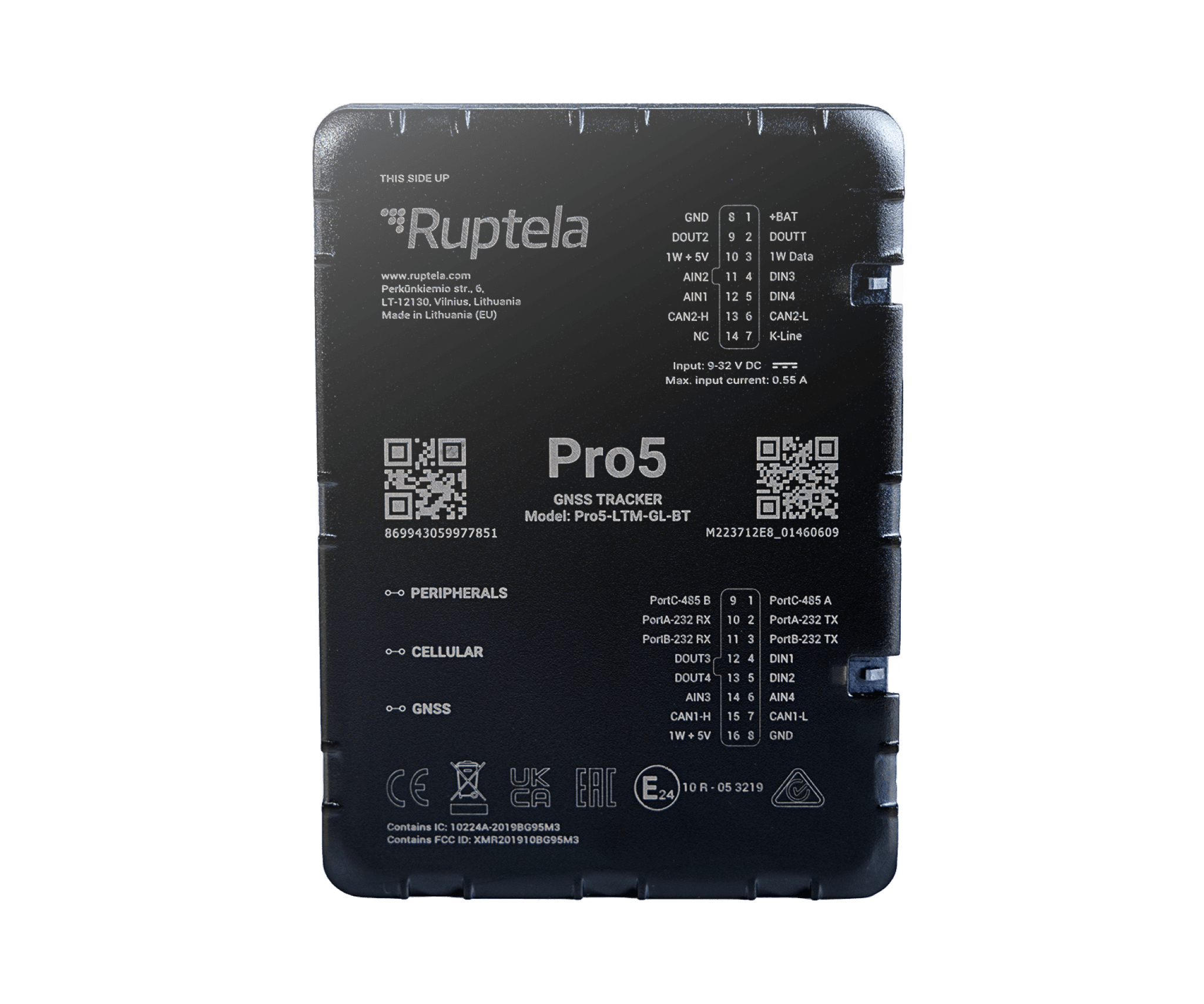

Pro5

Advanced GPS tracker for all types of vehicles – trucks, busses, agriculture, and other specialized machinery. It is designed for vehicle tracking and can perform advanced tasks – read on-board computer data (CAN), monitor driver behavior, manage fuel, etc.
The device is available in  4G (LTE Cat M1) with 2G fallback network with 2G fallback and Bluetooth for communication.


  • LTE Cat M1 (4G) connectivity
  • HCV data reading
  • Dual GPS antenna design
  • 4xDIN, 4xAIN, 4xDOUT, 1-Wire interface
  • RS232x2 and RS485 interfaces
pro5 product e1594879944693

Overview

  • LTE Cat M1 (4G) connectivity
  • CANbus reading (FMS, J1708, J1939)
  • External and Internal antennas
  • Built-in battery
  • 2x RS232
  • 1x RS485
  • 4x Digital inputs
  • 4x Analog inputs
  • 4x Digital outputs
  • 3x CAN interfaces
  • 1-Wire interface
  • Micro USB and 3x indications LEDs
  • Sleep and deep sleep modes
  • Accelerometer
  • Power supply range 9 – 32 V DC
  • Commands and configuration via SMS
  • Jamming detection
  • Size 102 x 74 x 23 mm

Detailed specification

Pro5

All manuals are available at doc.ruptela.com

Device Center: configure trackers with ease

Ruptela tracking devices are configured using the Device Center application.

Device Center is a clear and user-friendly application with semi-automated configuration.  All-new design and configuration process improvements help new and advanced users with tracker configuration.

Device Management Platform: Remote configuration and firmware updates of HW devices

Device Management Platform is a dynamic online solution that allows remote configuration and firmware updates of GPS tracking devices. The platform gives the possibility to monitor the installed base from a single point of command. It is a complementary solution to all compatible Ruptela’s hardware devices.

Pro5 features:

  • Basic HCV CAN reading
  • HCV fuel monitoring
  • Driver behavior monitoring
  • Safety and security
  • Customizable with accessories

Available product versions:

PRO5-LTM-GL-BT: Pro5 with global LTE Cat M1 and Bluetooth
