HCV5
Advanced all-in-one GPS tracker for complex fleet, trailer, and refrigerated transport solutions.
The most advanced tracker built for complex solutions

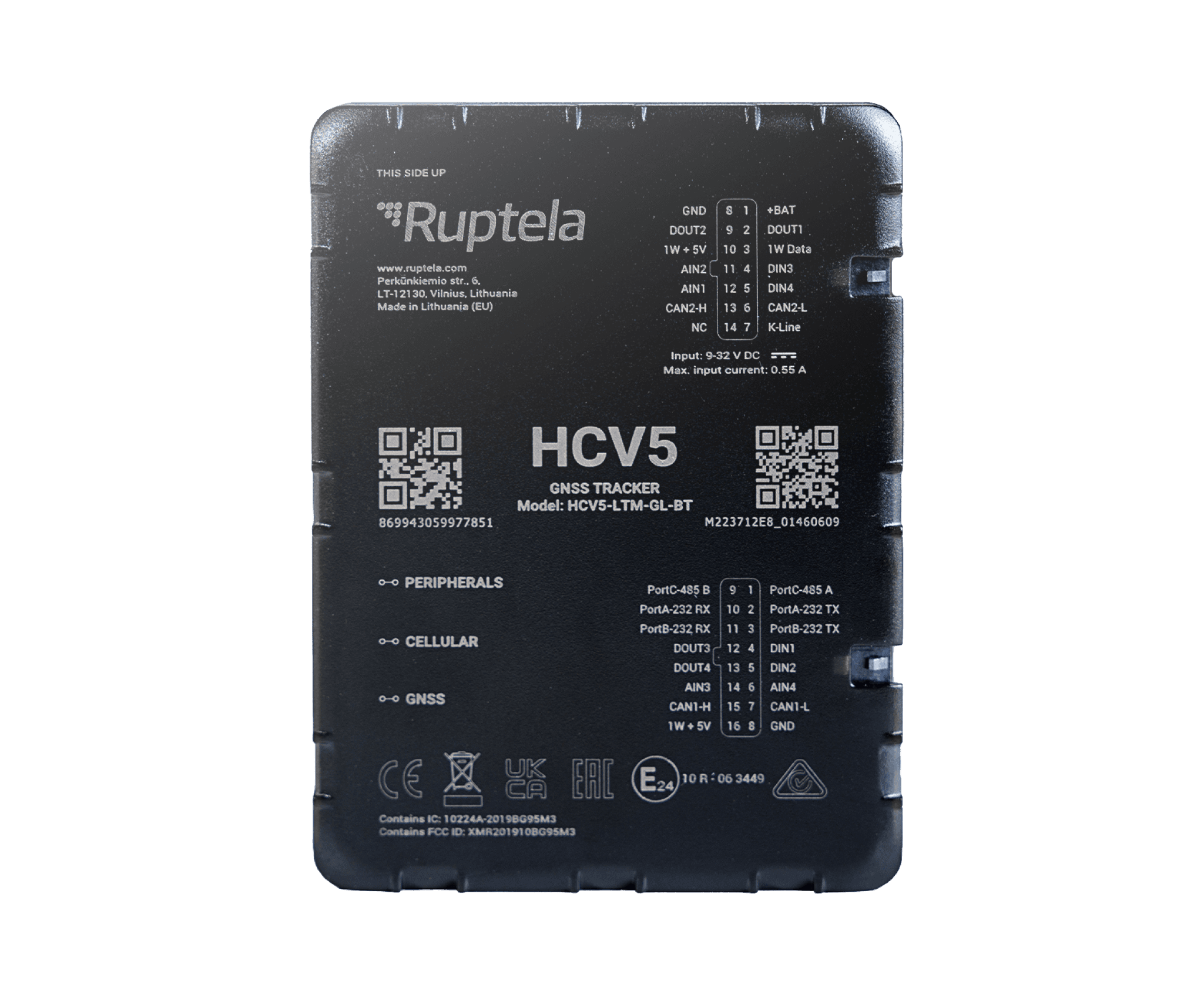

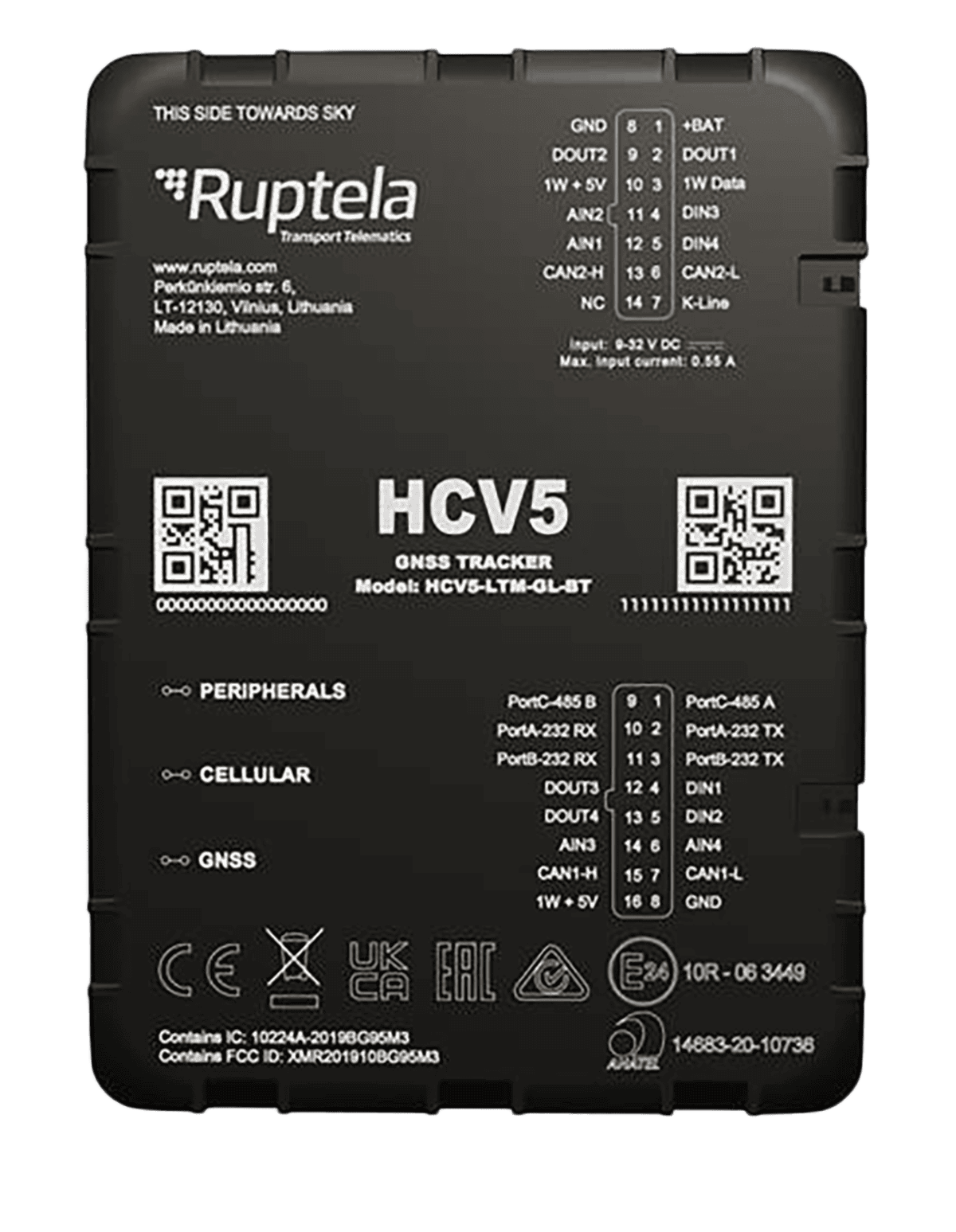

HCV5 is an advanced Ruptela GPS tracker for complex logistics fleets handling long-haul, refrigerated cargo and trailers. HCV5 supports compliance-driven operations with remote tachograph access, driver behavior monitoring, and full visibility across vehicles, trailers, and cargo in demanding transport environments.
Precise GNSS location monitoring
U-blox GNSS module supporting GPS, GLONASS, and Galileo, with an optional external antenna and Cell ID fallback when satellite signal is unavailable.
4G+2G connectivity
Future-ready LTE Cat M1 and NB-IoT connectivity, with 2G fallback where 4G is not available.
Dual CAN & K-Line data reading
Two CAN interfaces and K-Line read data from heavy and light commercial vehicles, including proprietary manufacturer parameters, error codes, and tachograph data.
Custom CAN
Expand compatibility beyond the supported list and read CAN data from any vehicle, giving you the flexibility to better support your clients.
Remote tachograph download
Download tachograph files remotely without manual intervention, saving time and simplifying compliance with driving time regulations.
Bluetooth LE 5.1
Wireless connection to fuel, temperature, door, and ID sensors, enabling faster installation with less wiring. Custom BLE enables simple integration of new BLE devices.
Extensive I/O interfaces
4 digital inputs, 4 analog inputs, 4 digital outputs, 1-Wire and 3 serial ports connect fuel sensors, refrigeration units, RFID readers and other external equipment.
Easy installation
Compact 101 × 74 × 23 mm screwless housing, tailored harnesses, wireless solutions and concealed OBD installation, supported by dedicated installation tools.
Security & data protection
Tampering and jamming detection, TLS v1.2 encrypted data transfer, and an internal backup battery keep data and vehicles protected.
Smart features
Built-in accelerometer with impact detection and up to 32 GB of data storage, so no data is lost.
Remote tachograph data reading
HCV5 reads tachograph data remotely, without manual intervention. Fleets stay compliant with driving time regulations without taking vehicles off the road, saving time and reducing administrative work.
Real-time monitoring of fleets and cargo
Live location and status of vehicles and cargo, with instant alerts on critical events.
Fleet efficiency optimization
Detailed vehicle data from CAN and K-Line supports smarter routing, maintenance planning, and lower operating costs.
Driver behavior monitoring
Captures harsh braking, acceleration, cornering, and speeding to support driver education and safer driving.
Driver, vehicle and cargo safety and security
Driver identification, remote ignition blocking, tamper and jamming detection protect people, vehicles and goods.
Fuel monitoring
CAN fuel data and fuel level sensors track consumption and refueling, helping prevent fuel theft.
Cargo conditions monitoring
Refrigeration unit data and temperature sensors keep sensitive cargo within range.
Trailer tracking
Trailer identification, location, and EBS data give full visibility of every trailer on the road.
Customizable with accessories
Wired and wireless sensors, harnesses, and ID solutions adapt HCV5 to each fleet and project.
Accident reconstruction data recording
Accelerometer data with impact detection records incident data for accurate investigation.
HCV5 by industry:
Logistics & Transportation
Location tracking, remote tachograph downloads, and fuel optimization for long-haul trucks, trailers, and distribution fleets.Public transport & Buses
Driver behavior monitoring, driving time compliance, and real-time location data for safe, punctual passenger transport.Agriculture
CAN data from tractors and harvesters reveal engine hours, fuel use, and field activity to improve seasonal planning.Construction & Heavy equipment
Engine load, operating hours, and location monitoring in harsh environments to protect equipment and maximize uptime.Refrigerated & Sensitive cargo
Refrigeration unit data and temperature sensors support cold-chain compliance and the safe delivery of sensitive goods.Delivery services
Route visibility, driver identification, and business or private trip selection for efficient last-mile operations.Utility & Emergency services
Real-time location and vehicle data for faster dispatch, safer driving and reliable service coverage.Car dealership, Leasing & Car-sharing
Driver identification, usage tracking, and stolen vehicle recovery to protect assets and simplify shared use.
FMS Harness
Dedicated harness for installing HCV5 in trucks and heavy vehicles. It speeds up installation, supports professional setup, reduces wiring errors, and ensures reliable CAN bus data reading.
EasyCAN
Contactless CAN bus connection with no wire cutting, keeping the vehicle warranty intact.
Other harnesses
Tacho and reefer harnesses for heavy vehicles, plus OBDII and splitter harnesses for concealed installation.
Fuel level sensors
Monitor fuel level and consumption, with fuel caps to help prevent fuel theft.
Temperature sensors
Measure cargo or refrigerator temperature, wired or wireless.
Wireless trailer ID
Rugged BLE beacon for identifying trailers, containers, or equipment, with up to 20 years of battery life.
Driver identification
Driver verification via RFID, iButton, or BLE driver ID.
Ignition block relay
Remote ignition blocking via the platform or SMS.
Trailer sensors
TPMS, tilt angle, axle load, and weight sensors for full visibility of trailer condition.
External GNSS antenna
Improves positioning accuracy when the tracker is installed under metal or in obstructed areas.
CAN For ALL
Ruptela universal adapter combines truck and trailer CAN data into one feed, so HCV5 can read vehicle and tachograph data at the same time.
| Connectivity | LTE Cat M1/NB-IoT with 2G fallback |
| Bluetooth LE | 5.1 |
| GNSS module | u-blox M8, GPS, GLONASS, Galileo |
| Vehicle data reading | 2 CAN interfaces and 1 K-Line, incl. proprietary manufacturer data |
| Custom CAN | Supported |
| Tachograph | Remote data reading and file download |
| I/O interfaces | 4 digital inputs, 4 analog inputs, 4 digital outputs, 1-Wire |
| Serial ports | 2 RS232 and 1 RS485 (simultaneous), transparent channel |
| Memory | 8 MB internal (39,000 records), SD card slot up to 32 GB (250M records) |
| Security | Tampering and jamming detection, TLS v1.2 |
| Power supply | 9 to 32 V DC |
| Internal backup battery | 1050 mAh |
| Operating temperature | −20 to +60 °C |
| Certifications | CE, E-mark, UKCA, CITC, FCC, PTCRB, AT&T, IC, EAC, RCM |
| Size | 101 × 74 × 23 mm |
Full HCV5 specifications

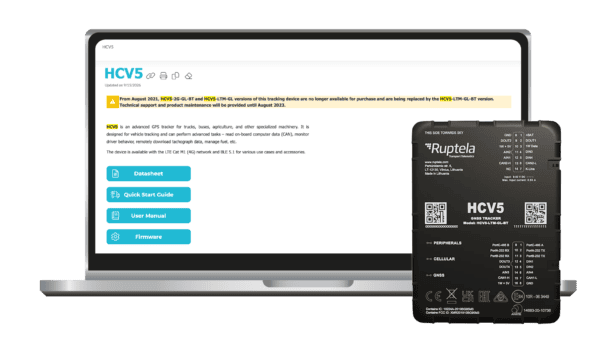

Datasheets, quick start guides, user manuals and the latest firmware for HCV5 are available on doc.ruptela.com.
Advanced Configurator
Ruptela’s desktop tool for fine-tuning HCV5 settings, including operating modes, custom I/O events, CAN bus options, Custom CAN parameters, and tachograph settings.
Device Management Platform
Online platform for remote configuration of HCV5 devices and over-the-air (FOTA) firmware updates across the entire fleet. Updates are also possible via SMS or USB.
| HCV5-LTM-GL-BT | HCV5 with global LTE Cat M1 and BLE |
